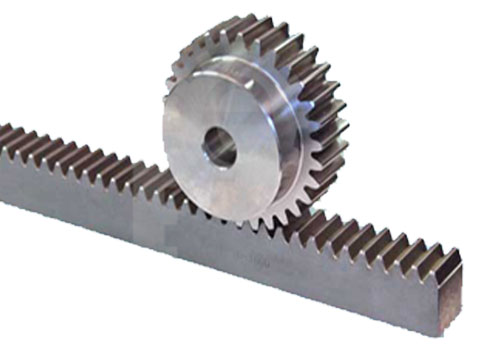

Rack Gear

Owing to the expertise of our skilled professionals, we are able to manufacture and supply a high quality assortment of Rack Gears & pinion gear that is designed and fabricated from superior grade raw materials with the help of cutting-edge technology. Due to its superior performance, high strength, robust construction, longer life and durability.

Rack Gear & Pinion gear Specification:

  • Gear Minimum Module : 0.3 mm
  • Maximum Module : 25 mm
  • Minimum D.P. ( Diametrical Pitch ) : 50
  • Maximum D.P. ( Diametrical Pitch ) : 1
  • Maximum Length of Rack to be cut : 25 mm

Single piece Rack of Length 20 ft. can be cut. Pressure Angle of 20deg. as well as 14.5 deg. Cutters are used for Teeth Cutting. For Pinion Gears see our spur gear data.

Rack Gear & Pinion Gear Application:

A rack gear and pinion gear mechanism is a very efficient way of directly transferring rotary motion into linear motion. By varying the sizes of either the rack gears or the pinion gears, the rotation / linear travel ratio can be varied according to the requirement criteria. Furthermore, force variation can be designed in by varying the size of the pinion. The most common use today for a rack and pinion assembly is in automotive steering systems, but there are other uses for it as well.

We are leading manufacturer of Rack Gear & Pinion Gear, Supplier of Helical Gear, Exporter of Rack Gear & Pinion Gear, maintenance of Rack Gear & Pinion Gear in Gujarat, India.
